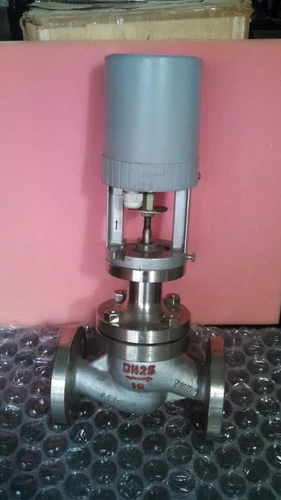

Electric Control Valve VA3200 1000N 4-20mA 24VAC SS Body size 25mm Controller

Description

SALE PRICE IS US$399+225 YOU PAY / EBAY RESTRICTION WE LIST LOW PRICE
switch  to select  ma or volt   / reverse or forward action .we check operation applying supply and input signal 4-20ma  work fine  more information please see picture
MODEL                       VA3200    1000 N
INPUT                         4-20ma
SUPPLY                     24VAC  50/60 hz
POS OUTPUT           4-20ma
BODY                        CF8 DN25 / 16  look SS
LINE SIZE                 25mm
flange outer dia      115mm
flange thickness    15mm
WEIGHT  ABOUT 8 KG
http://www.elex.com.cn/product_detail.asp?id=240
Characteristics
Low AC voltage Synchronic Reversible Motor with Magnetic clutch.

Valve working position indicator

Two auxiliary switches and a manual control pole.(optional)

Suitable for 15mm, 17mm and 19mm strike. Output could be 0~10 V DC or 4~20 A DC.

Operation Model (DA or RA) can be Ｓelected by jumper.
Technical Data
VA-3100(VA3102) VA-3200(VA3202)

Operate/Control ：Reversible, increment control Proportional and Integral control

Output: 0-10VDC,4-20m A DC

Motor Bi-directional Synchronous Motor with magnetism clutch

Power Supply of Motor ：24 VAC 50/60 HZ,5.5 VA

Power Consumption ： 2A

Normal Torque： 500 N for VA-31xx series,1000 N for VA-32xx series

Material Gear: stainless steel, Brass

Reduce Down Panel: Zinc- galvanizated steel

Bracket: die-casting aluminum alloy

Shell: fire-proof PC ABS plastic

Operating Time & Stroke VA-31xx series: 50 Hz:4.6 s/mm, 60 HZ:3.8 s/mm

VA-32xx series: 50 Hz:8.3 s/mm, 60 HZ:6.9 s/mm

Temperature Operation: -5~55℃ Storage: -20~ 65℃

Max. Relative Humidity No condensing 90% no condensing.
Applicable
Types: on/off, Floating and Modulating (Proportional and Integral).
